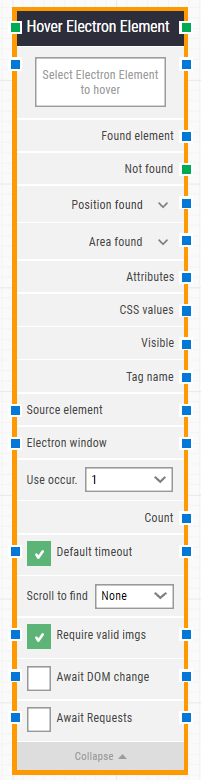

Hover Electron Element

Hover Electron Element

Building Block Header

The green input connector (top left) triggers this block to begin execution.

The green output connector (top right) is triggered when an Electron element is successfully hovered over.

You can always change the header text of a block by double-clicking on it and typing in a new title.

Select Electron Element to hover

This property contains the locator for the Electron element to be hovered.

An Electron element locator can be captured by right-clicking on the property and selecting “Capture new Electron element”.

The property can be cleared by right-clicking and selecting “Clear Electron element”.

Found element

This property contains the found Electron element in the application window. This can be used as the source element in other building blocks, for instance to narrow down searches for elements such as table cells.

Not found

This green output connector triggers if the Electron element is not found before the timeout (see below). This is typically used to branch the execution flow or to explicitly fail a case by linking it to a Fail block.

Position found

The application canvas position where the Electron element was found in X, Y coordinates. The top-left corner of the application canvas is position 0, 0.

Area found

The application canvas position and size of the found Electron element in X, Y, Width, Height coordinates, starting with the upper-leftmost pixel. The top-left corner of the screen is position 0, 0.

Attributes

This property contains a list of all attributes on the found Electron element as key value pairs. This includes standard HTML attributes such as class, style, href as well as any custom attributes such as data-xxx, etc.

For working with attributes more directly, the Get Electron Attribute building block is recommended.

CSS values

Currently unused.

Visible

This property will return True if the found Electron element is visible.

Tag name

The tag name of the found Electron element (e.g., div, tr, button or input).

Source element

You can choose to either define the source or select the “Element” option. By doing the latter, the Electron element locator will be limited to only work inside the source element.

Electron window

Once an Electron window is found and the focus is set, this property contains a handle to the window. This can be used in cases where multiple windows are open during when running a test in order to direct other building blocks to use a specific window.

Use occurrence

Select which occurrence of the Electron element to use, if more than one is found. Select “All” to iterate through all of the occurrences.

Count

This property contains the total number of found Electron elements that match the locator set above.

Default timeout

If the 'Default Timeout' property checkbox is not selected, then the timeout value will be set to 10 seconds unless changed manually. If the 'Default Timeout' property checkbox is selected, then the 'Default timeout' value selected in the flow settings (under “Max. run time”) will be applied.

Scroll to find

When a value other than “None” is selected, the building block will use scrolling when searching for the Electron element.

Require valid images

When this is selected, any Electron element locator that is set to find an image (img tag), will also validate that the image does in fact load correctly.

Await DOM change

Delay the search for the Electron element until there has been no changes to the application’s DOM for a specified period of time (e.g., three seconds).

This is useful when waiting for behind-the-scenes updates in javascript to occur. Regardless of this checkbox, the search and click will occur after waiting a maximum of 30 seconds.

Await Requests

Delay the search for the Electron element until there has been no active XHR requests for a specific period of time (e.g., three seconds).

Regardless of this checkbox, the search and click will occur after waiting a maximum of 30 seconds.
