Azure DevOps (ADO) Server Connection

The Azure DevOps (ADO) connection allows you to integrate Leapwork with ADO for automated testing. This integration allows you to automate test cases in Leapwork. The automated test cases can be executed multiple times. You can analyze execution report and view results on ADO.

Note: This feature can be accessed by Leapwork Admin only.

Add Connection

For importing a test case, create connection using ADO URL and personal access token.

To add a connection, click the Add button and the following pop-up appears:

On the Add Connection pop-up window:

  1. Enter the title in the Title field. It should be unique.
  2. Enter the description in the Description field.

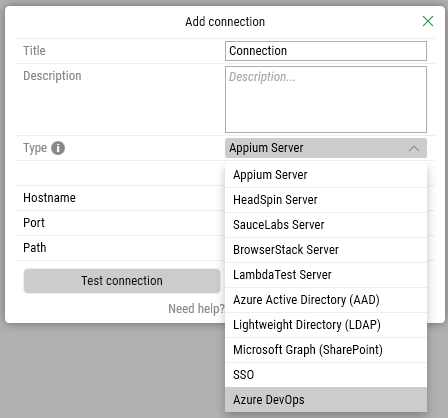

  3. From the Type drop-down, select the Azure DevOps option:

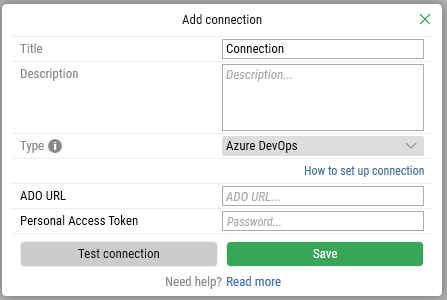

  4. Select Azure DevOps and the following new fields appear:
  5. Navigate to ADO User Settings > Personal Access Tokens.
  6. Click Create Token and configure the following access permissions:
    • Work item: Read and write
    • Test management: Read and write

    Note: At the moment it only supports single ADO connection. ADO connection type will not appear if you already have ADO connection configured in connection settings.
  7. Click the Test connection button to test the connection.
  8. Click the Save button to save the details. Once your connection is saved a success message appears to let you know the connection is successful.

Use the Edit or Delete buttons located next to the Add button to modify or remove the connection.
